The KV-202 Bench top vacuum ultraviolet spectrophotometer has achieved compactness, high resolution and high stability compared to the conventional vacuum compatible type by using our original nitrogen purge type monochromator (KV-200). Light from a deuterium lamp that emits ultraviolet light is incident on a monochromator via a condensing system, is separated by a diffraction grating, and monochromatic light is extracted. The extracted monochromatic light is split into two light paths, one of which is detected as a monitor for compensating for changes in the light source, and the other is used for a semi-double beam method that irrdiates the sample, enabling highly stable transmittance spectrum measurement.

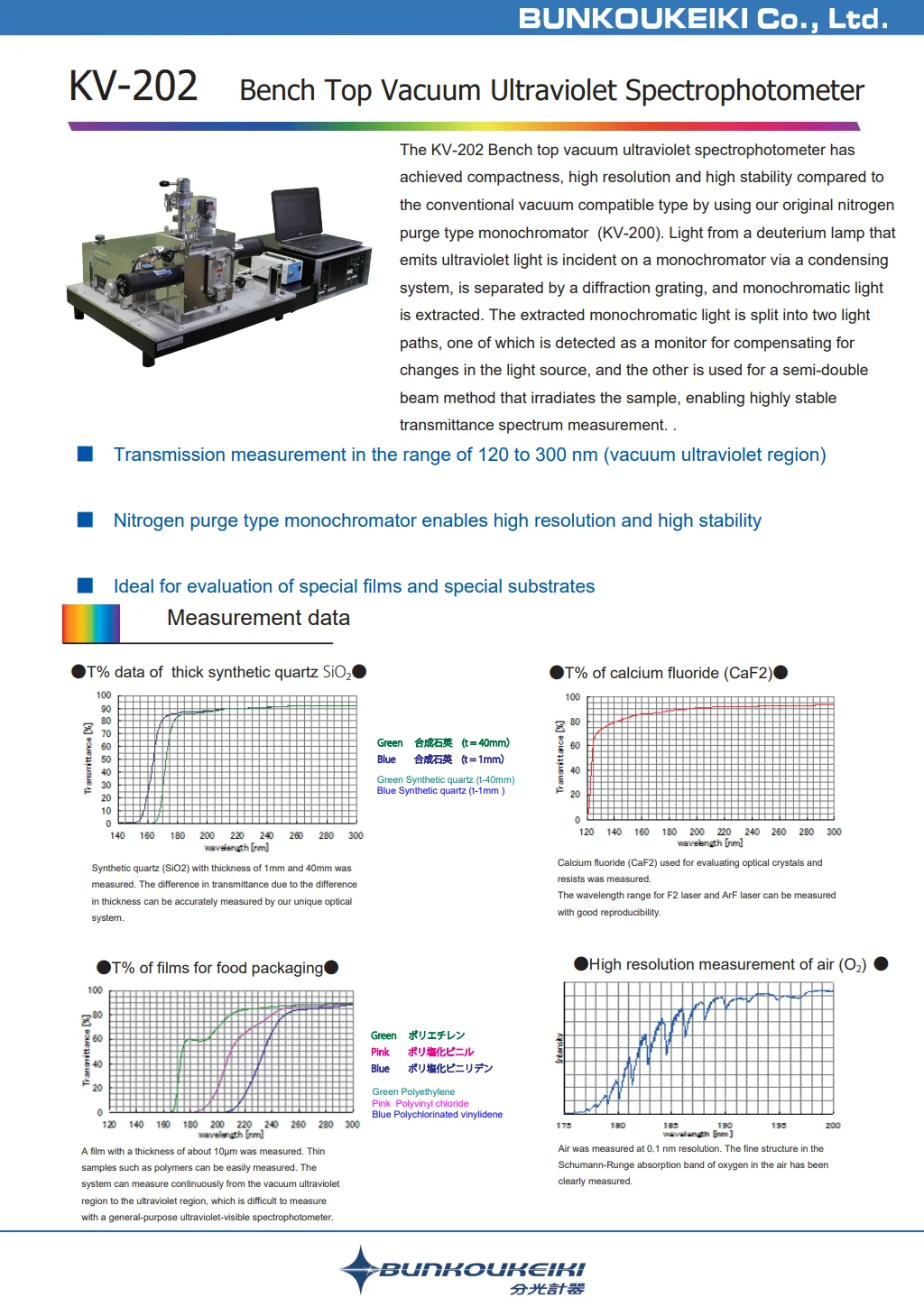

Catalog（PDF） Download
KV-202 Bench Top Vacuum Ultraviolet Spectrophometer 〉
A4／2pages／1.22MB
Features
- Transmission measurement in the range of 120 to 300nm ( vacuum ultraviolet region )
- Nitrogen purge type monochromator enables high resolution and high stability
- Ideal for evaluation of special films and special substrates

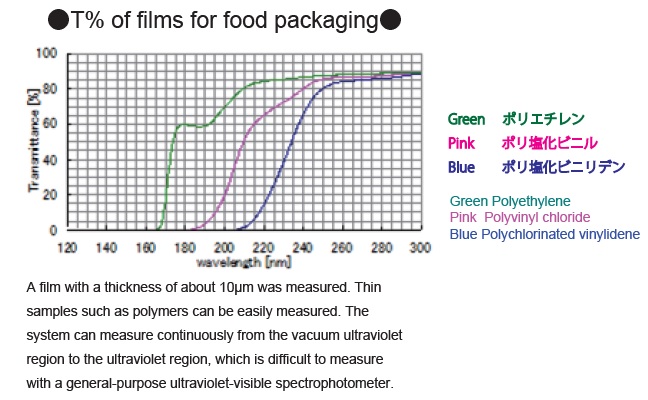

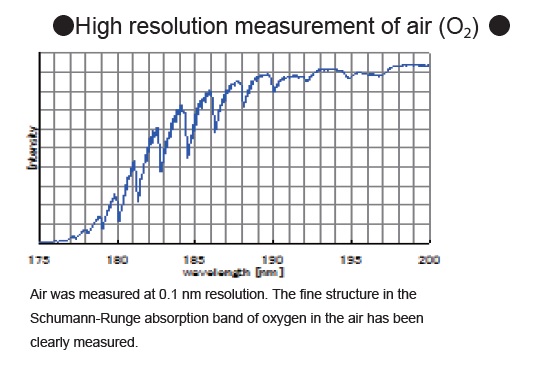

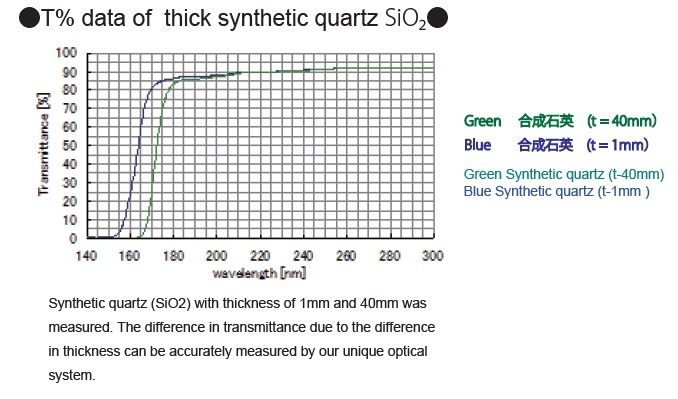

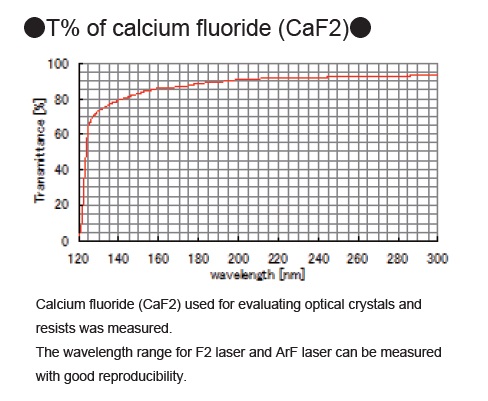

Measurement Data
Specifications
| Light source | Deuterium lamp 30W |
| Wavelength range | 120～300nm |
| Measurement reprofucibillty | ±0.3%T *1 |
| Wavelength reproducibillty | ±0.1nm |
| Sample size | Minimum 3×3mm ～ Maximum 12×12mm |
| Sample thickness | Minimun 1mm ～ Maximum 3mm *2 |
| Measurement method | Semi double beam |
| Detector | PMT with a salicylic acid soda window |
| Setting of display | Scale( Y axis, X axis ), Trace ( moving cursor ) Overlay of the spectrum, Delete of spectrum display |
| Data processing | Smoothing, Arithmetic, 1st ～ 3rd Derivatives, Peak processing (Peal Find Peak Height, Perk Area,Data Dump) |
＊１ Under the following conditions:wavelength 120～300nm, Scanning speed 60nm/min, 100% flatness
＊２ Specifications of the holder shape and sample numbers to be placed can be customized as option.
Standard configurations
- Deuterium lamp 30W
- Power supply for Deuterium lamp
- KV-200 (nitrogen purge) monochromator
- Sample compartment(for nitroben purge and vacuum)
- Transmisson measurement sample holder
- PMT(photmultiplier tube) with a salicylic acid soda window
- Power supply for PMT
- Controller(wavelength drive, filter swiching)
- Software
- PC for controlling the system
- Instruction Manual

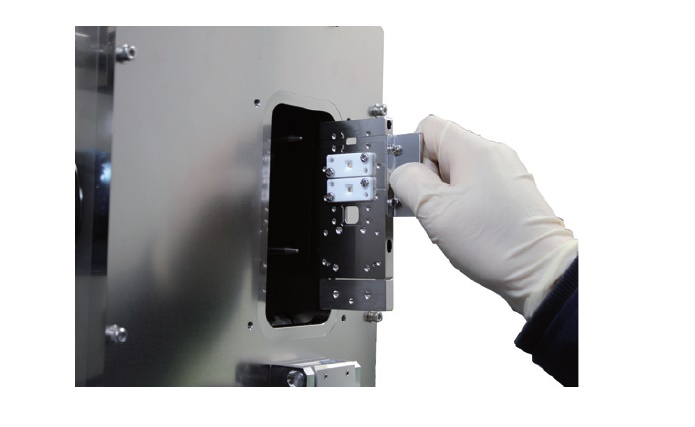

Transmission measurement sample holder
Option
- Vacuum pump
- Various type of sample holder
- Various gratings
- Salicylic acid soda window
Dimensions
- Size : Approx.W800×D630×H500mm
- Weight : Approx.70kg
*excluding a controller and computer
