The BS-500BK is the Photodiode detector which is calibrated by the solar simulatator whose light intensity is calibrated by the secondary reference crystalline silicon solar cell.
The BS-500BK show the similar spectral response to those shown by the monocrystal and polycrystal silicon wafer.

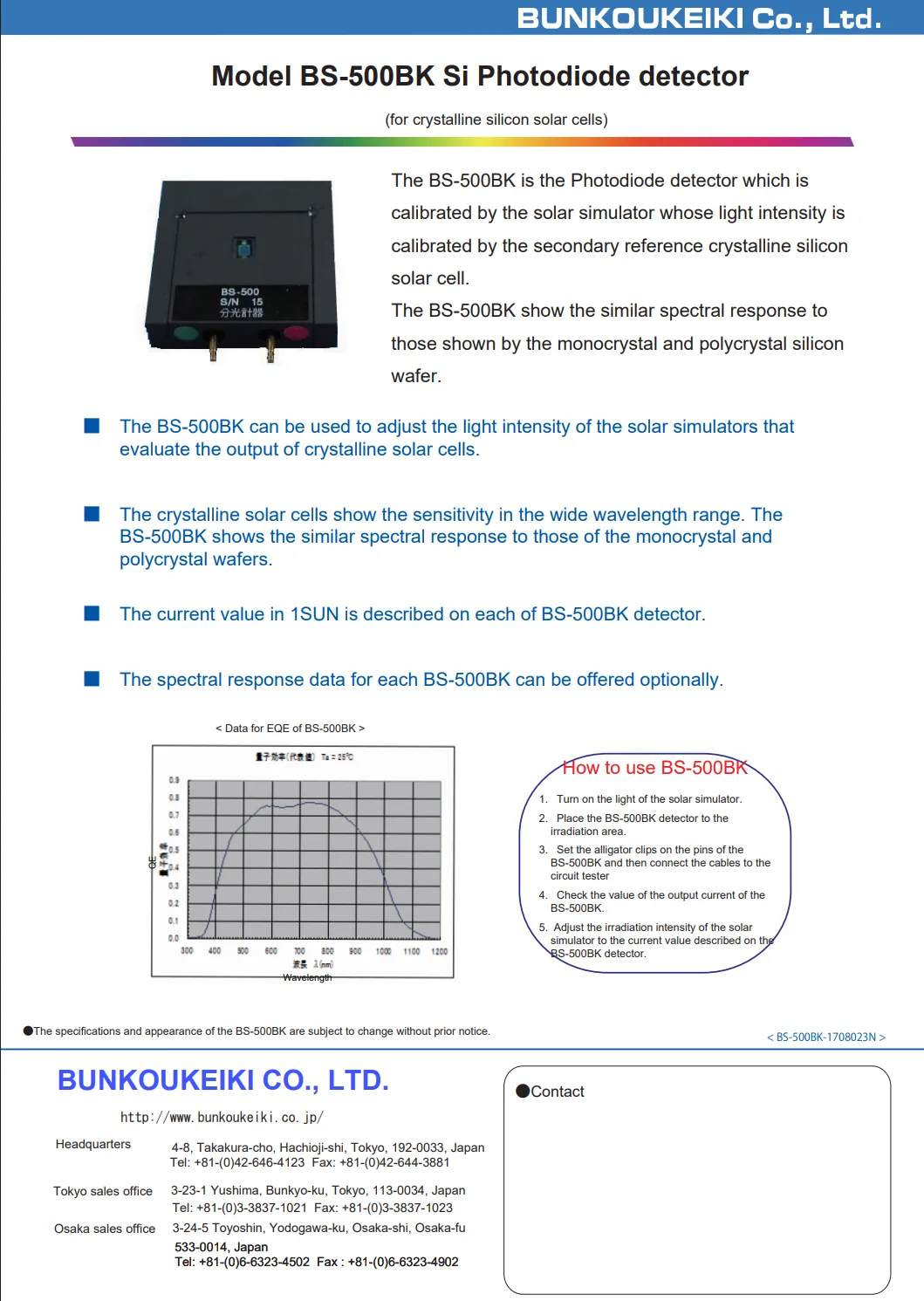

Catalog（PDF） Download
BS-500BK Si Photodiode detector 〉
A4／1pages／449KB
Features
- The BS-500BK can be used to adjust the light intensity of the solar simulators that evaluate the output of crystalline solar cells.
- The crystalline solar cells show the sensitivity in the wide wavelength range.The BS-500BK shows the similar spectral response to those of the monocrystal and polycrystal wafers.
- The current value in 1SUN is described on each of BS-500BK detector.
- The spectral response data for each BS-500BK can be offered optionally.

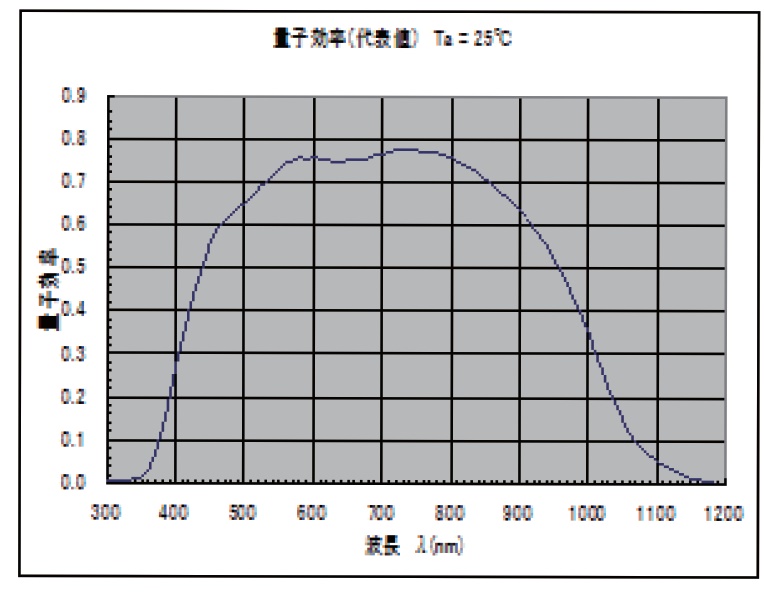

Data for EQE of BS-500BK
How to use BS-500BK
- Turn on the light of the solar simulator.
- Place the BS-500BK detector to the irradiation area.
- Set the alligator clips on the pins of the BS-500BK and then connect the cables to the circuit tester.
- Check the value of the output current of the BS-500BK.
- Adjust the irrdiation intensity of the solar simulator to the current value described on the BS-500BK detector.
Standard configuretions
- BS-500BK Si Photodiode detecotor
- Testing
