The intensity of irradiation(mW/cm2) at each wavelength is measured with a calibrated silicon photodiode, and the current value of the mesurement sample is measured based on irradiation intensity.The dedicated software(SR_PRO) can automatically display the spectral response and quantum efficiency of various solar cells and photoelectric conversion elements. Our unique xenon lamp optical system and high-effciency monochromator make it possible to irradiate hige intensity monochromatic(5mW/cm2), making it ideal for evaluating oraganic solar cells(dye-sensitized,orgainc thin films,perovskite solar cells).

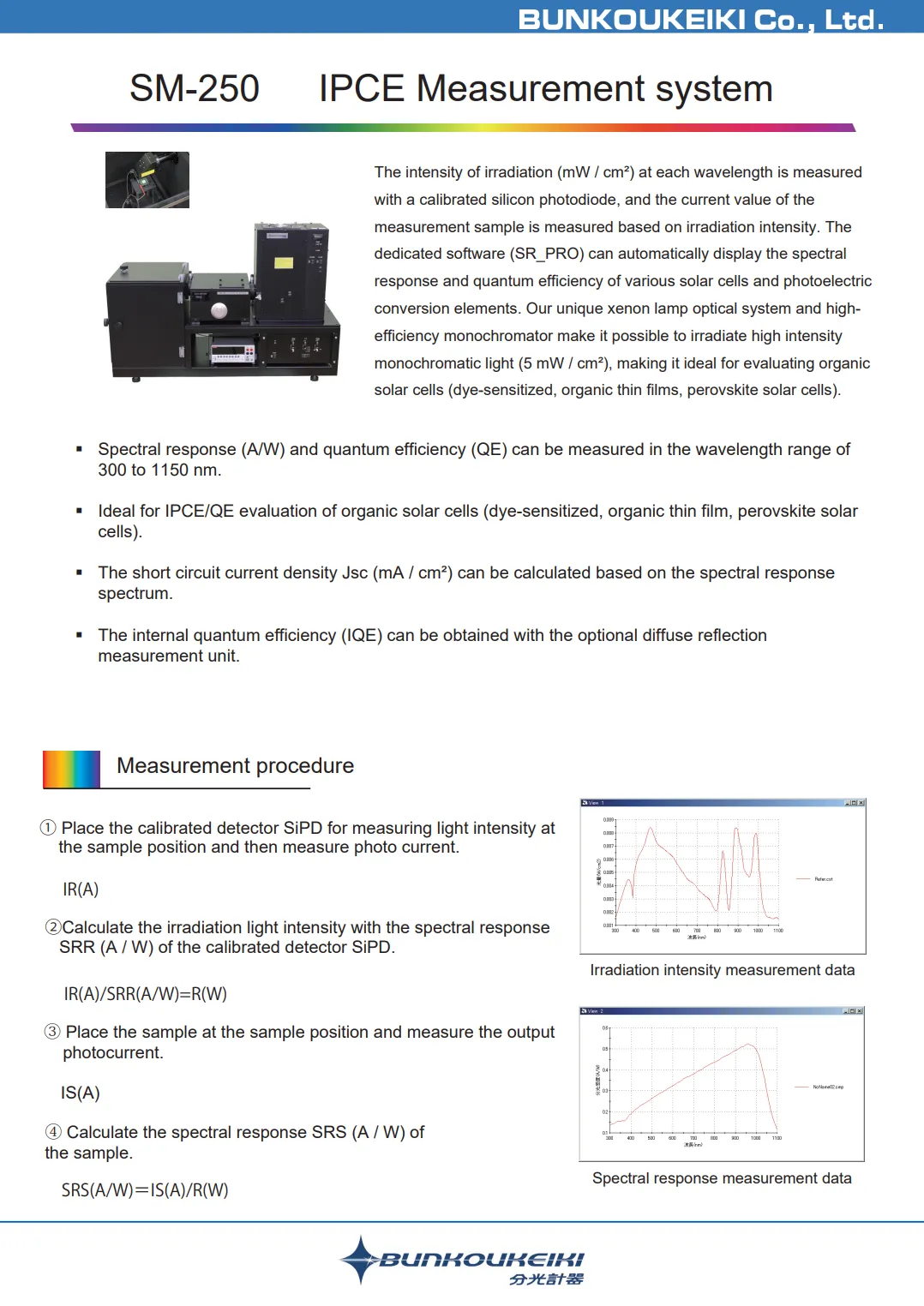

Catalog（PDF） Download
SM-250 IPCE
Measurement System 〉
A4／2pages／1.79MB
Features
- Spectral response(A/W) and quantum efficiency(QE) can be measured in the wavelength range of 300 to 1150nm
- Ideal for IPCE/QE evalution of organic solar cells(dye-sensitized,organic thin film,perocskite solar cells)
- The short circuit current density Jsc(mA/cm2) can be calculated based on the spectral response spectrum
- The intarnal quantum efficiency(IQE) can be obtained with optional diffuse reflection measurement unit

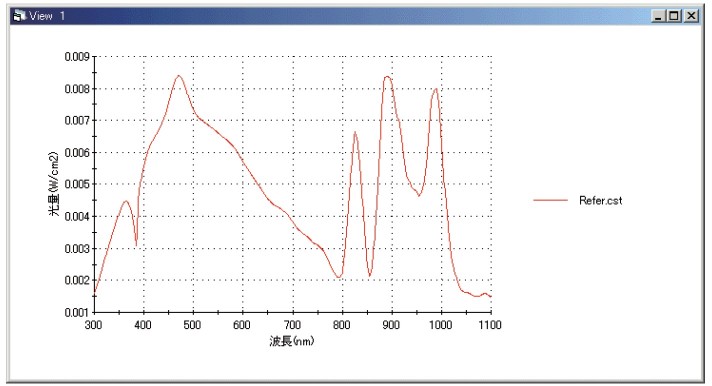

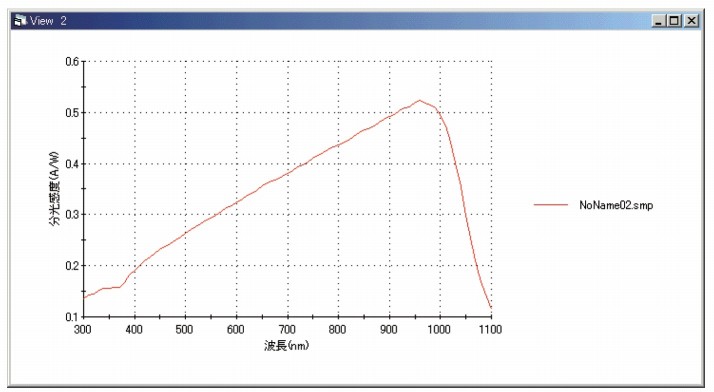

Measurement Data
Specifications
| Measurement Wavelength range | 300～1150nm（Option:300～2000nm） |
| Wavelength width(Wavelength qurity) | Variable（0～24nm) |
| Wavelength precision | 1nm |
| Irradiation Intensity | Max.5mW/cm2 or more（at wavelength470nm） |
| Effective Irradiation area | 10×10mm（Irradiation area: approx.14×14mm） |
| Irradiation direction | 360 degree variable（vertical,horizontal angle） |
| Positional non-sunifomity | Within±5% |
| Irradiation light stability | Within±1% |
| Focal length | 80mm from the tip of the lens to the focal plane |
| Height of light axis | 140mm from the bottom of the system to the focal plane |
| Focal length of monochorometor | 250mm(MgF2 prevention of ultraviolet deterioration) |
| Optical system of monochrometor | Asummetrical Deformed Czerny-Turner Mount |
| Apeture ratio of monochrometor | F=4.3 |
| Stray light of monochrometor | 1×10-4 or less（at 546.1nm ±5nm） |
| Operation system for monochorometor | Sine bar mechanism,Wavelength linear scanning |
| Ammeter | Current a acqusiton:10pA～1A, Voltage application:±20V |
| Software(measurement items) | Spectral response/quantum efficiency Short circuit current density calaculation |
| Software(graph) | X：Wavelength(nm）Y：Irradiation intensity(ｍW)/ Spectral response（A/W)/ Quantum effciency（QE) |
Standard Configration
- Xenon lamp 150W Ozone free cartridge type (air cooling)
- Xenon lamp house(power supply)
- Monochromator
- Grating 600line/mm, blazed at 500nm
- High order light cut filter（U-330・L-37・R-64）
- Exitng light condensing unit:10×10mm uniform irradiation
- Ammeter（Current acquisition：10pA～1A Voltage application：±20V)
- Controller（WL scan,high order light cut filter switching,shutter switching）
- Interface unit
- Sample chamber(opened in three direction)
- Desktop base
- Silicon photo diode detector(with spectral response absolute value calibration data)
- Detector holder
- Connection cable（alligator clips）
- Software（SR_PRO）
- NotePC・GP-IB-USB cable・USB cable
Optional accessories
- Diffuse Reflection Measurement Unit(for claculating Intarnal Quantum Effciency)
- InGaAs detector( for long wavelength measurement)
- Mechanical chopper（for AC measurement）
- Exiting light condensing optical system
- Lock-in amplifer
- Various gretings
- Various high order light filter
- Various ammeters
- Various sample,stage,measurement cables
External dimensions
- Power supply：AC100V ±10V 50/60Hz 10A
- Main unit：Approx.W1120×Ｄ450×H780mm
- Weight：Approx.50Kg
